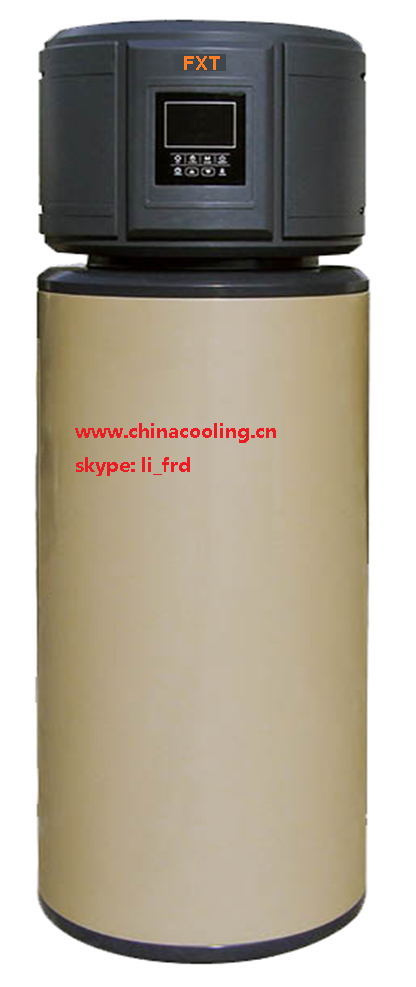

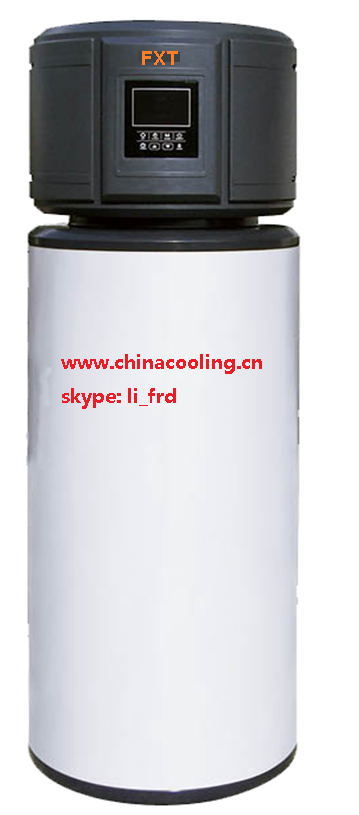

F series all in one heat pump

Place of Origin: Zhejiang,China (Mainland)
Installation: Others
Type: Tank
Certification: CE
Use: Bathroom
Brand Name: FXT

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, T/T, WUPacking:wooden case/carton
Min. Order:50 Set/Sets
Means of Transport:Ocean, Air, Land

Product Introduction

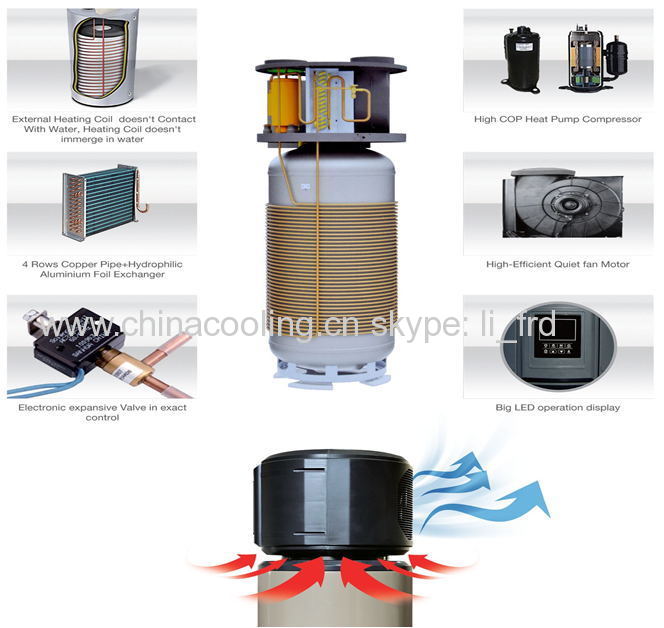

◆ Optional Refrigerant:R410A & R134A.
◆ High COP Heat Pump Compressor ,fan motor ,Quiet ,Saving.
◆ External coil (not contact with water) . coil not immersion.
◆ Inner Tank Using SUS 304 Stainless Steel Tank.
◆ Optional Auxiliary Electric Heating as Backup Heat Source & high temperature antisepsis.
◆ Max Hot Water Temp:65℃



F-Series Parameters
 ModelASH-150L/FASH-200L/FASH-250L/F
Power SupplyV/Ph/Hz220V~240V/50Hz
RefrigerantTypeR410A
Water tank capacityL150200250
Rated Heating CapacitykW2.22.22.2
BTU/h750075007500
Rated Power inputw610610610
Rated currentA2.782.782.78
COPw/w3.63.63.6
Rated Hot Water Output L/h48L/h48L/h48L/h
Auxiliary electric heatingkW2(Optional)
Rated water temp55℃
Max Hot Water Temp65℃
Operation temp range -7~45℃
Level against electric shockIII
Water-proof gradeIP×4 IP×4 IP×4
Water Pipe Dimensioninch3/4.
NoisedB(A)484848
weightkg758698
Net Dimension(DxH)mmΦ510*1660Φ570*1747Φ570*2037
Packing Dimension(LxDxH)mm595*580*1755710*680*1845710*680*2132
Container loading qty ( 20GP/40HQ)pcs27/54.24/48.24/48.
FA-Series Parameters
 ModelASH-150L/FAASH-200L/FAASH-250L/FA
Power SupplyV/Ph/Hz220V~240V/50Hz
RefrigerantTypeR134A
Water tank capacityL150200250
Rated Heating CapacitykW2.32.32.3
BTU/h780078007800
Rated Power inputw655655655
Rated currentA2.92.92.9
COPw/w3.553.553.55
Rated Hot Water Output L/h50L/h50L/h50L/h
Auxiliary electric heatingkW2(Optional)
Rated water temp55℃
Max Hot Water Temp65℃
Operation temp range -7~45℃
Level against electric shockIII
Water-proof gradeIP×4 IP×4 IP×4
Water Pipe Dimensioninch3/4.3/4.3/4.
NoisedB(A)484848
weightkg758698
Net Dimension(DxH)mmΦ510*1660Φ570*1747Φ570*2037
Packing Dimension(LxDxH)mm595*580*1755710*680*1845710*680*2132
Container loading qty ( 20GP/40HQ)pcs27/54.24/48.24/48.
FA-Series Parameters
 ModelASH-150L/FAASH-200L/FAASH-250L/FA
Power SupplyV/Ph/Hz220V~240V/50Hz
RefrigerantTypeR134A
Water tank capacityL150200250
Rated Heating CapacitykW2.32.32.3
BTU/h780078007800
Rated Power inputw655655655
Rated currentA2.92.92.9
COPw/w3.553.553.55
Rated Hot Water Output L/h50L/h50L/h50L/h
Auxiliary electric heatingkW2(Optional)
Rated water temp55℃
Max Hot Water Temp65℃
Operation temp range -7~45℃
Level against electric shockIII
Water-proof gradeIP×4 IP×4 IP×4
Water Pipe Dimensioninch3/4.3/4.3/4.
NoisedB(A)484848
weightkg758698
Net Dimension(DxH)mmΦ510*1660Φ570*1747Φ570*2037
Packing Dimension(LxDxH)mm595*580*1755710*680*1845710*680*2132
Container loading qty ( 20GP/40HQ)pcs27/54.24/48.24/48.
FA-Series Parameters
 ModelASH-150L/FAASH-200L/FAASH-250L/FA
Power SupplyV/Ph/Hz220V~240V/50Hz
RefrigerantTypeR134A
Water tank capacityL150200250
Rated Heating CapacitykW2.32.32.3
BTU/h780078007800
Rated Power inputw655655655
Rated currentA2.92.92.9
COPw/w3.553.553.55
Rated Hot Water Output L/h50L/h50L/h50L/h
Auxiliary electric heatingkW2(Optional)
Rated water temp55℃
Max Hot Water Temp65℃
Operation temp range -7~45℃
Level against electric shockIII
Water-proof gradeIP×4 IP×4 IP×4
Water Pipe Dimensioninch3/4.3/4.3/4.
NoisedB(A)484848
weightkg758698
Net Dimension(DxH)mmΦ510*1660Φ570*1747Φ570*2037
Packing Dimension(LxDxH)mm595*580*1755710*680*1845710*680*2132
Container loading qty ( 20GP/40HQ)pcs27/54.24/48.24/48.


Category: Thermodynamic solar heat pump unit
